Create a public/anonymous Windows network drive on TrueNAS-13.0-U3.1Core 2022

Capturing my step-by-step notes here on how to set up a public SMB share on a network using TrueNAS. So that next time I don't need to fumble around. If this helps someone else, that's a bonus.

Starting from a completely fresh installation on a system with three hard drives.

In this virtualised trial run, I have 10GB drive for TrueNAS installation, 2 x 32GB drives for storage.

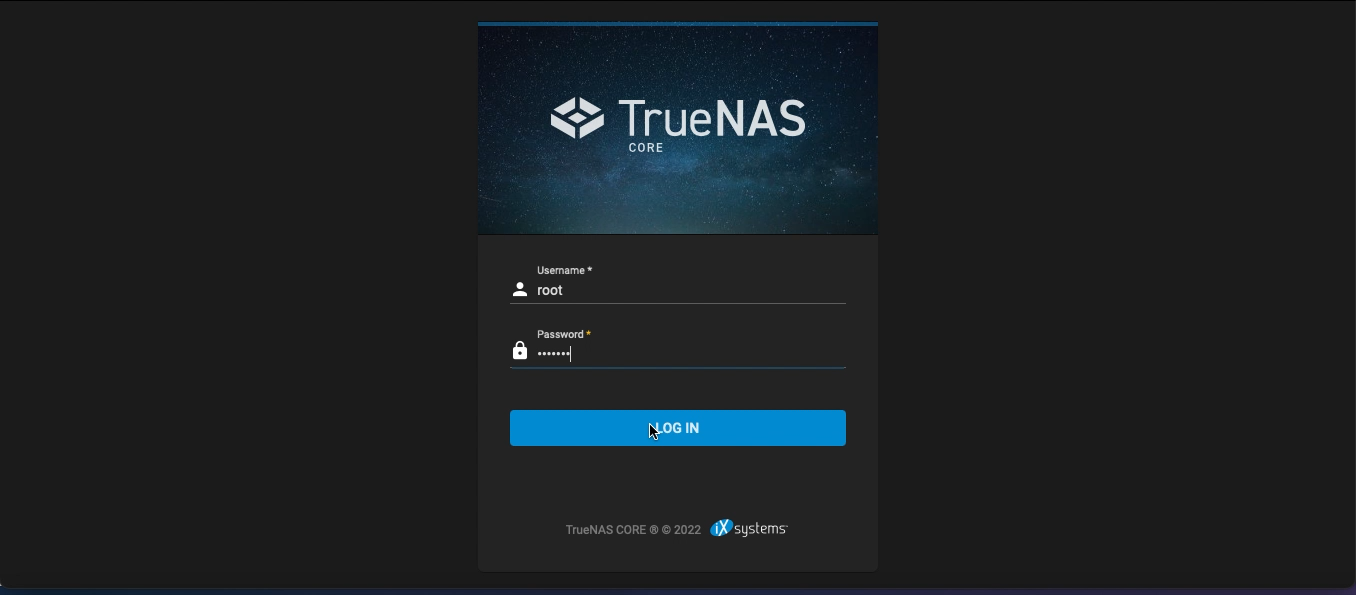

Login as root

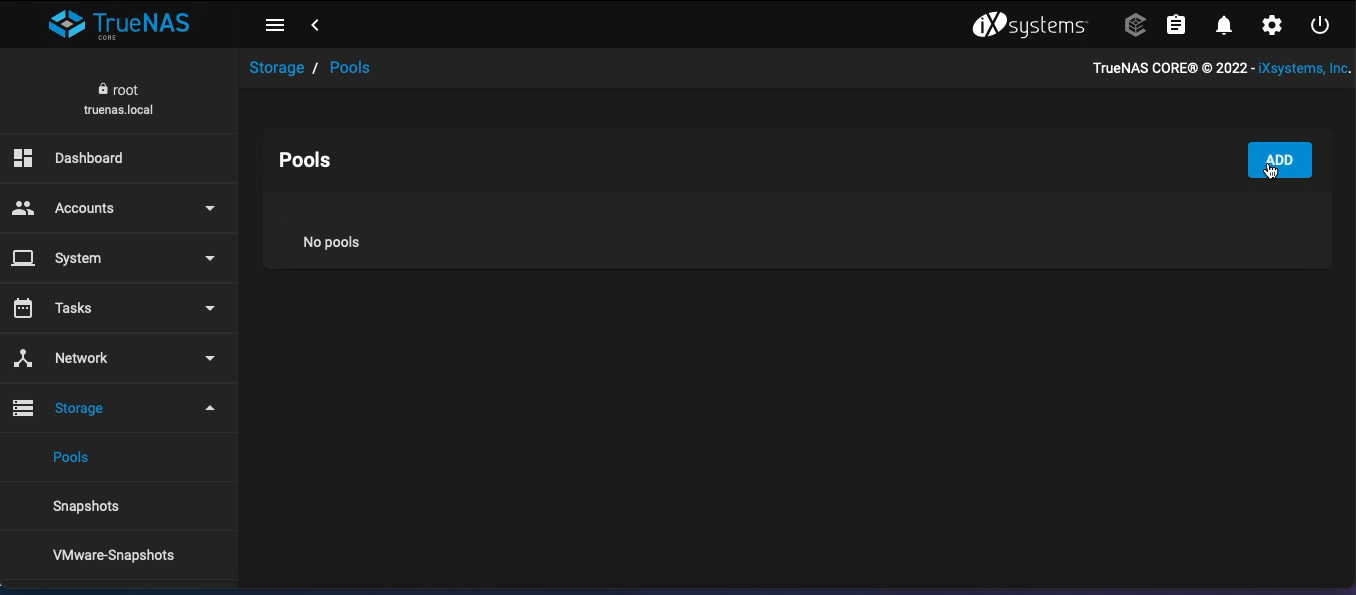

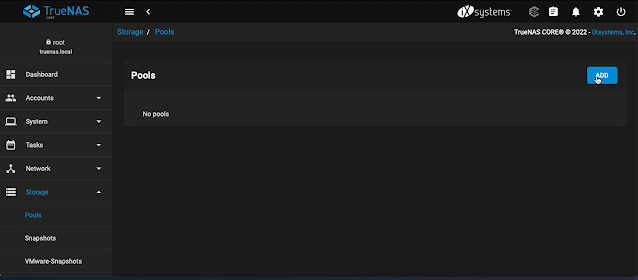

Storage / Pools / Add



Create Pool

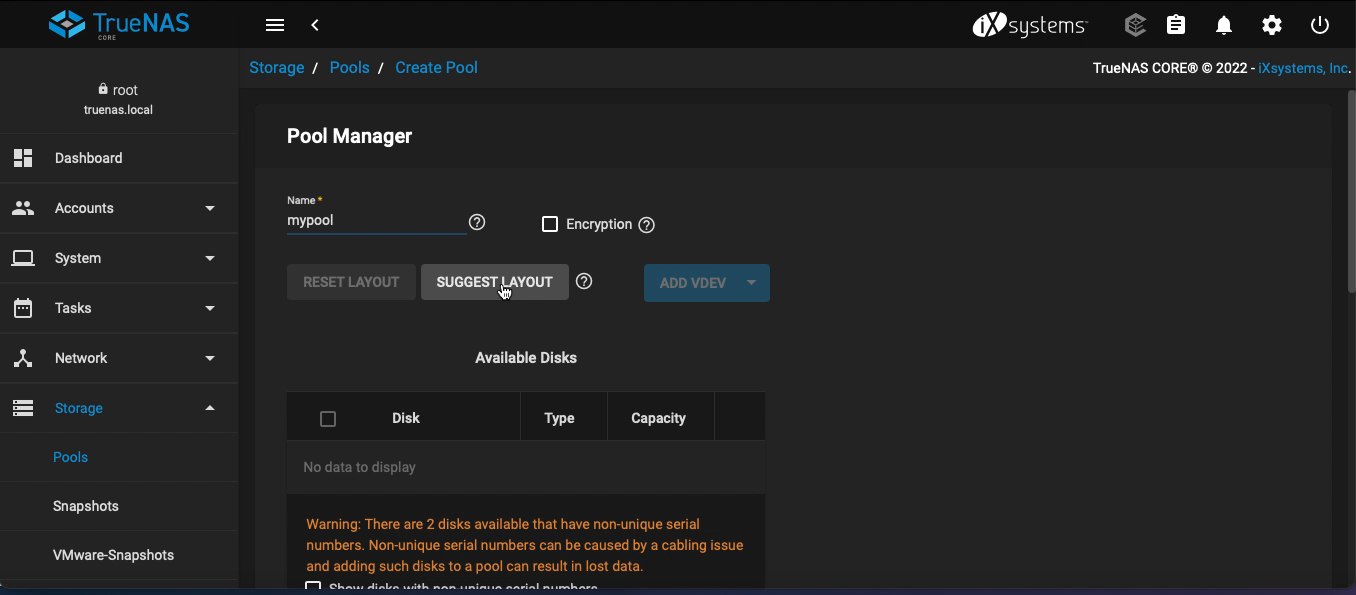

Name: my pool

Suggest Layout



Create



Confirm, Create Pool

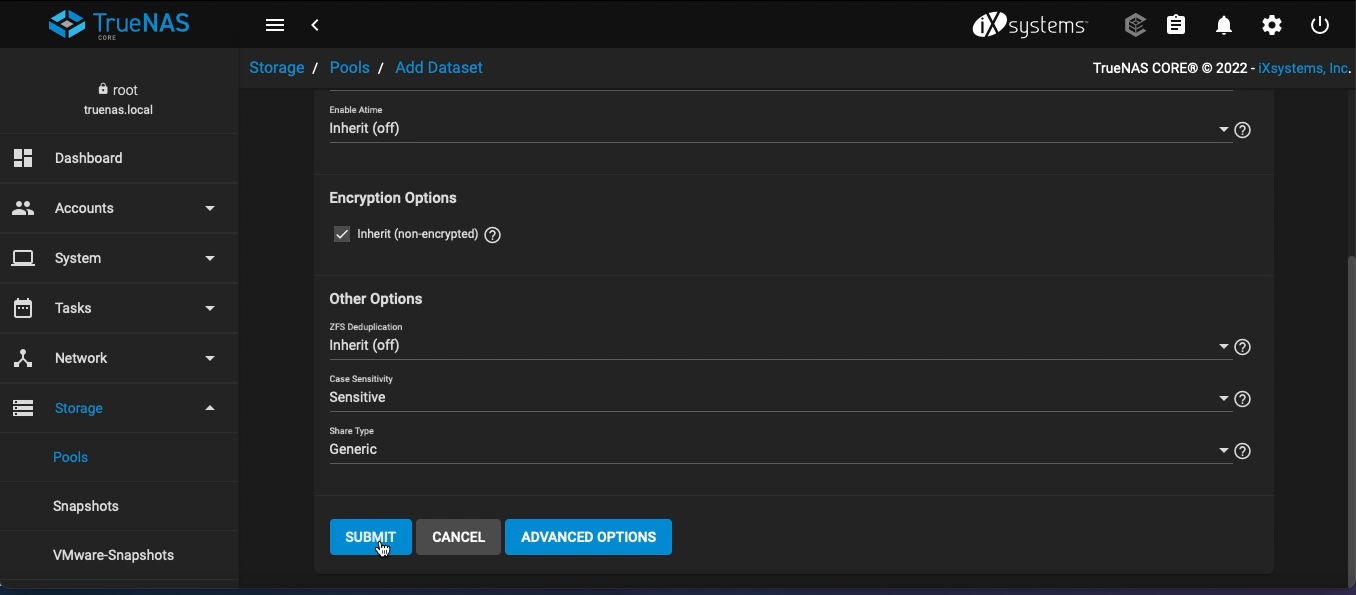

Options / Add Dataset



Name: pub



Submit

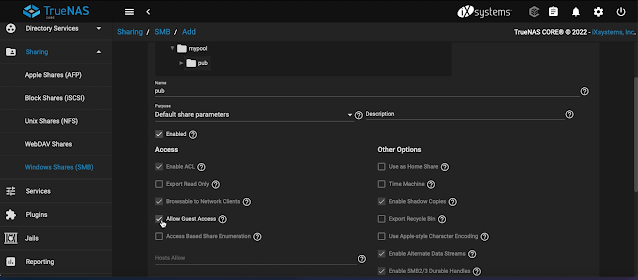

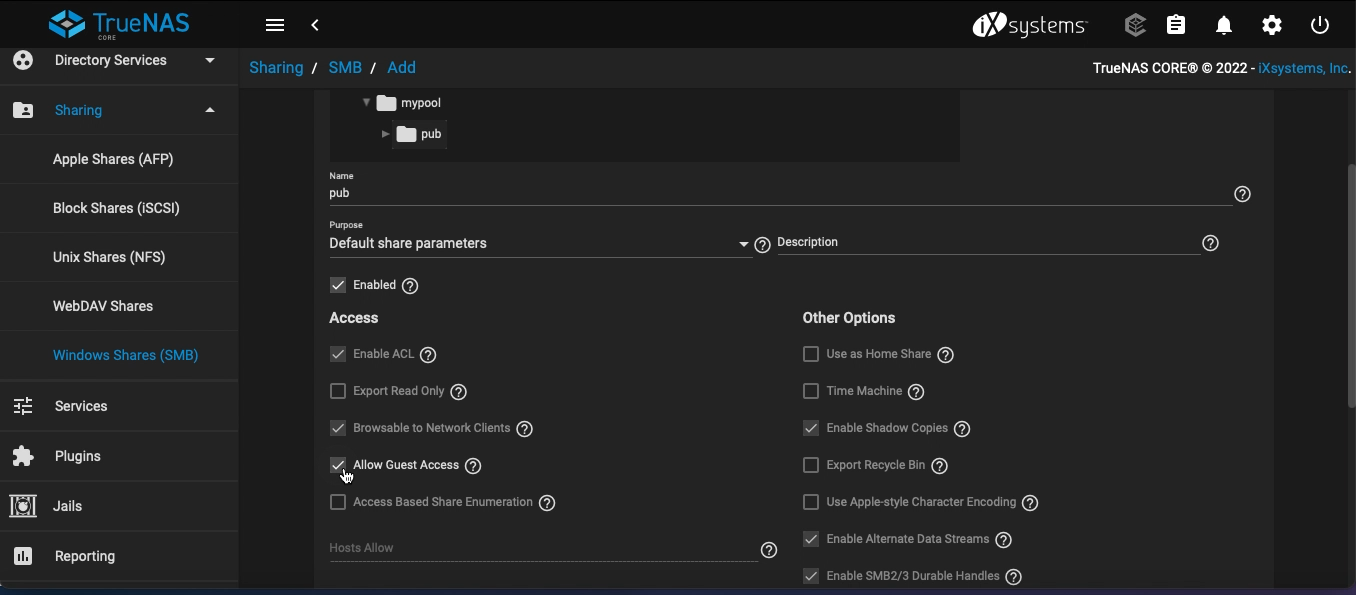

Sharing / Windows Shares (SMB) / Add



Path: /mnt/mypool/pub



Advanced Options





Allow Guest Access


Submit

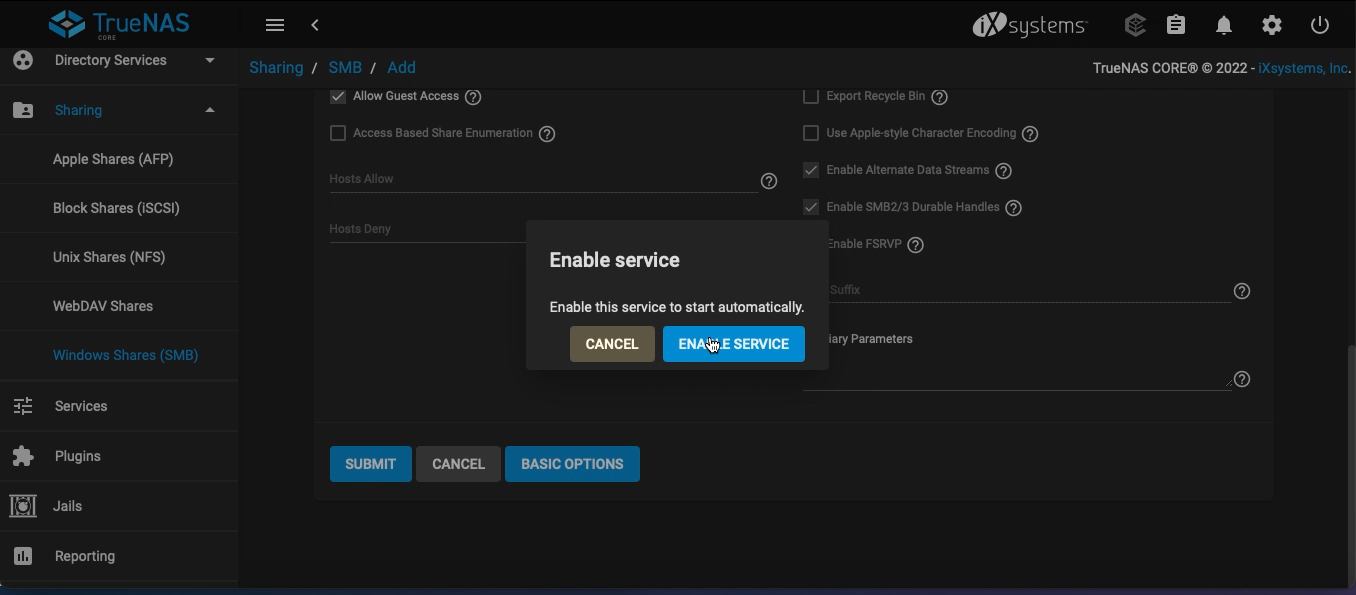

Enable Service

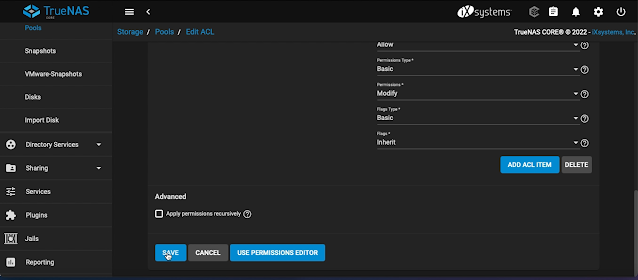

Configure ACL / Configure Now



Default ACL Options



OPEN



Continue

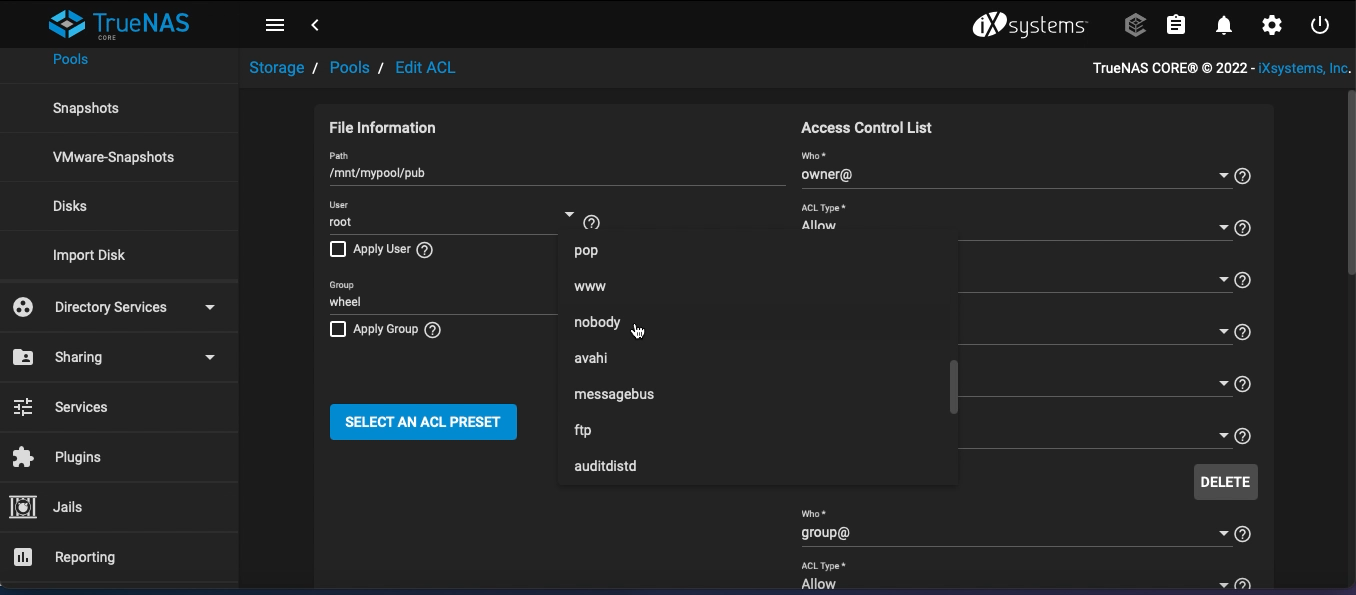

User: nobody



Group: nobody

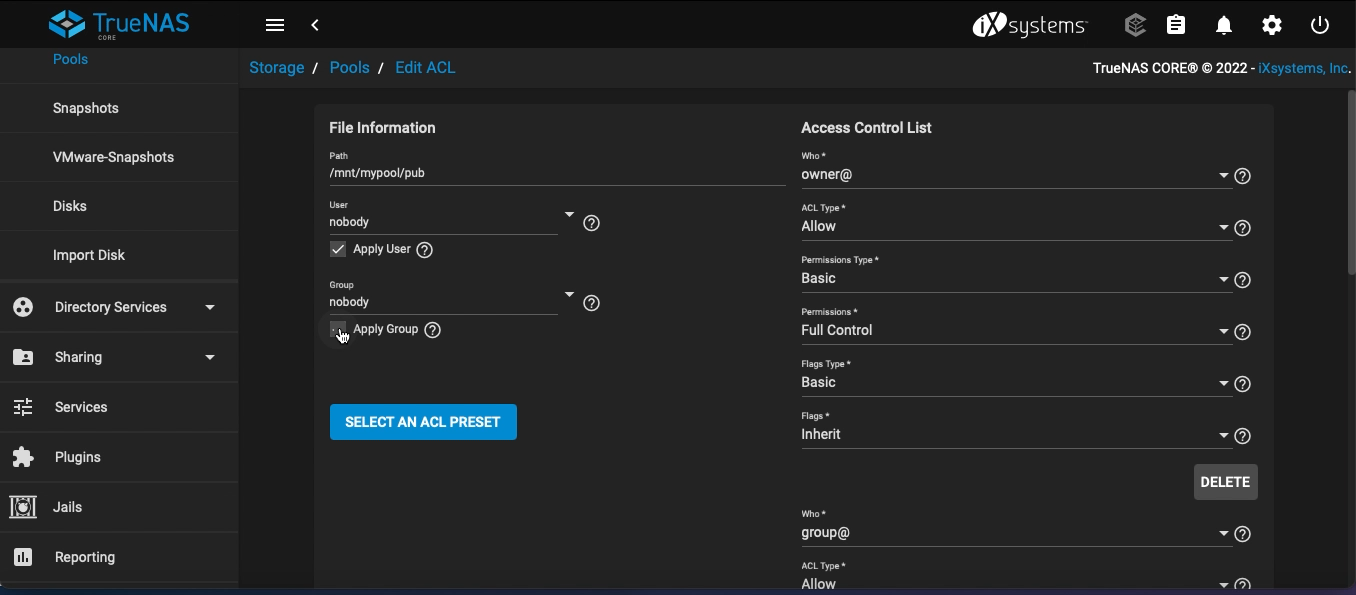

Apply User + Apply Group



Save



Open your network drive in Finder



Check that you can create a folder. Enjoy.
